Victron Energy BatteryProtect

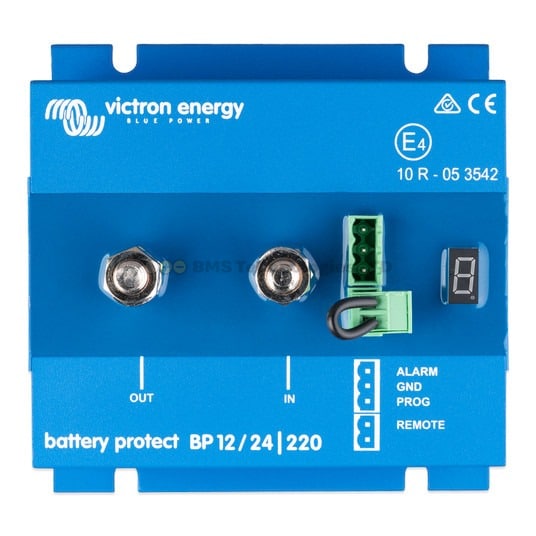

Victron Energy BatteryProtect 12/24V 220A

Victron Energy BatteryProtect 12/24V 220A (BPR000220400) is an intelligent battery management device designed to protect your batteries from excessive discharge and prevent damage due to low voltage. Ideal for both 12V and 24V systems, this automatic voltage-sensing unit disconnects non-essential loads before your battery is fully depleted—maximising lifespan and system reliability.

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.

The BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.

Features of the Battery Protect 12/24V 220A

Over voltage protection
To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16V respectively 32V.

Ignition proof
No relays but MOSFET switches, and therefore no sparks.

12/24V auto ranging
The BatteryProtect 12/24V 220A automatically detects system voltage one time only

Programming made easy
The BatteryProtect 12/24V 220A can be set to engage / disengage at several different voltages.
The seven segment display will indicate which setting has been chosen.

Delayed alarm output
The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay.

Delayed load disconnect and delayed reconnect
The load will be disconnected 90 seconds after the alarm has been activated. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected.
The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.

Ultra low current consumption
This is important in case of Li-ion batteries, especially after low voltage shutdown.
