  • Alfatronix Power Tector 20A Solid State Battery Guard

Alfatronix PT20 Battery Guard

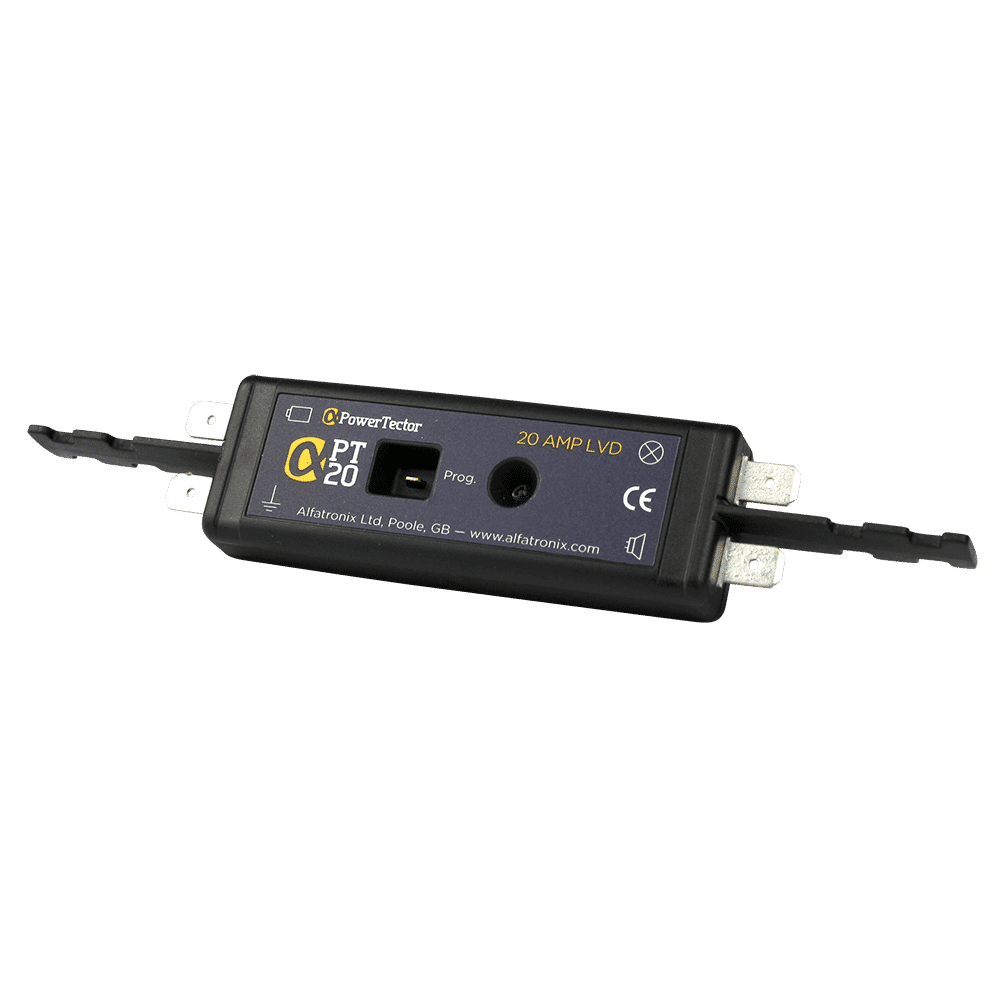

Alfatronix PT20 PowerTector 20A Solid State Battery Guard

155 × 30 × 15 mm
SKU: 7006

£35.29

£42.35 Inc VAT

Alfatronix 20 amp solid state battery guard that will monitor the source voltage and disconnect the equipment from the battery if the voltage falls below a pre-determined level

Read More >
Weight 0.45 kg
Dimensions 155 × 30 × 15 mm
Continuous Rating

20Amp

Input Voltage

9-32VDC

Output Voltage

Equal to input voltage when operating

Operating temperature

-25°C to +60°C

Application

Ambulances, Commercial service vehicles, Fire engines, General protection of starter battery from discharge from using external appliances connected to battery or inverter, Military vehicles

Features

12V/24V Automatic selection, 20 amps rating, Alarm feature and disconnect feature, Compact size, E mark, AES spec 5, CE and IP65 certification, Easy to install, Eliminates possibility of a discharged battery, Fully programmable battery guard, LED indicates operational status, Lifetime guarantee, Manual shutdown facility, Over current and over temperature sensing circuit, Switch connection from remote on/off

Download >

When purchasing from the TransQuip, our aim is to make buying online as convenient as possible, which means offering a wide range of delivery (sometimes called carriage) options for you to choose from.

Delivery charges vary depending on:

  • the delivery address of your goods (your region)

Your total charge for delivery, along with all the different delivery options we’re able to offer for any particular order, will always be clearly displayed at the checkout, however the information below gives a general overview of our delivery charging structure.

Tip: Please use a specific persons name if you are using postage as small packages can be lost in larger company’s mailrooms.

More Info

We hope that you’re pleased with your purchase from TransQuip, however we do understand that occasionally, you may need to return goods to us. We’ve set out below the main reasons why goods tend to be returned, so please read all of the categories and follow the returns process which you feel applies to you…

Please note that our Returns Policy for Consumers does not affect your statutory rights. You can get more information about your statutory rights from the Citizens Advice Bureau (www.citizensadvice.org.uk) or Consumer Direct (www.direct.gov.uk). We reserve the right to inspect the goods and verify any fault(s) and/or any damage.

More Info

In Stock

Quantity

Estimated delivery by 16/10/2024

FREE DELIVERY

free returns

call us today

Click & collect

Product Description

The PowerTector Battery Guard is a solid state device that will monitor the battery voltage and disconnect the equipment from the battery if the voltage falls below a pre-determined level. The battery guard ensures that there is always sufficient voltage remaining in the battery to start a vehicle engine or ensuring power is available for other critical applications. The total discharge of a lead acid battery can cause damage to the internal cells significantly reducing the life of a battery, so the battery guard can also be set to disconnect equipment at a lower voltage that will protect the battery from total discharge, while allowing the maximum battery usage.

The units are pre-programmed for a selection of scenarios offering higher and lower disconnect voltages allowing users to select a programme to suit their needs from battery protect or shielding key equipment. Other features include, the terminals being insulated using a solid polycarbonate top assembly preventing accidental short circuit, multifunction LED provides programming and status information as well as options for additional visual or audible problem indicators. Ideal for protecting communications gear and ensuring enough charge for starting a vehicle engine.

Associated Products

No associated products at this time.

Product Information

Alfatronix 20 amp solid state battery guard that will monitor the source voltage and disconnect the equipment from the battery if the voltage falls below a pre-determined level
