‘Model 21’ Compression Latch is an altogether new design in composite materials, ideal for electrical enclosures and ‘visible’ applications where good appearance is essential.
Read More >In Stock
Quantity
Quantity
We offer tailored pricing and trade accounts for regular trade customers.

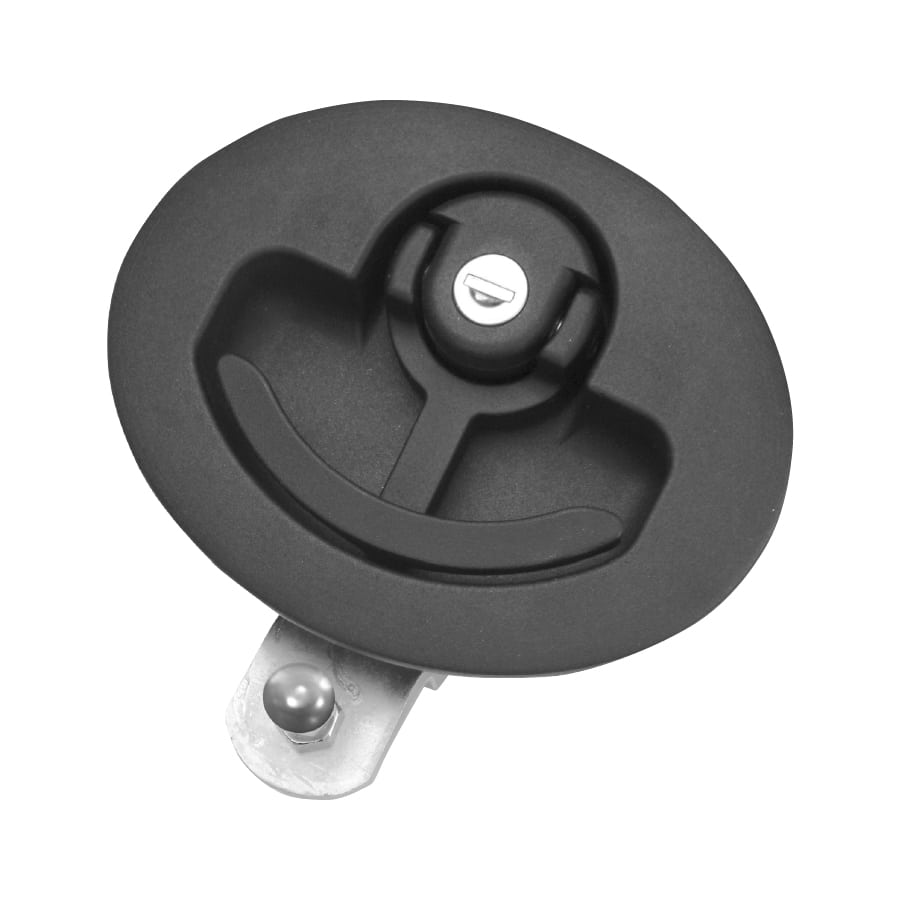

‘Model 21’ Compression Latch is an altogether new design in composite materials, providing a well-styled, versatile locking unit. Fixed invisibly, without ugly bolts or rivets, it allows easy adjustment with the latching point either above or below the handle, and with 6mm of ‘take-up’ to make an effortless seal against gasketed doors. The latch is ideal for electrical enclosures and ‘visible’ applications where good appearance is essential.

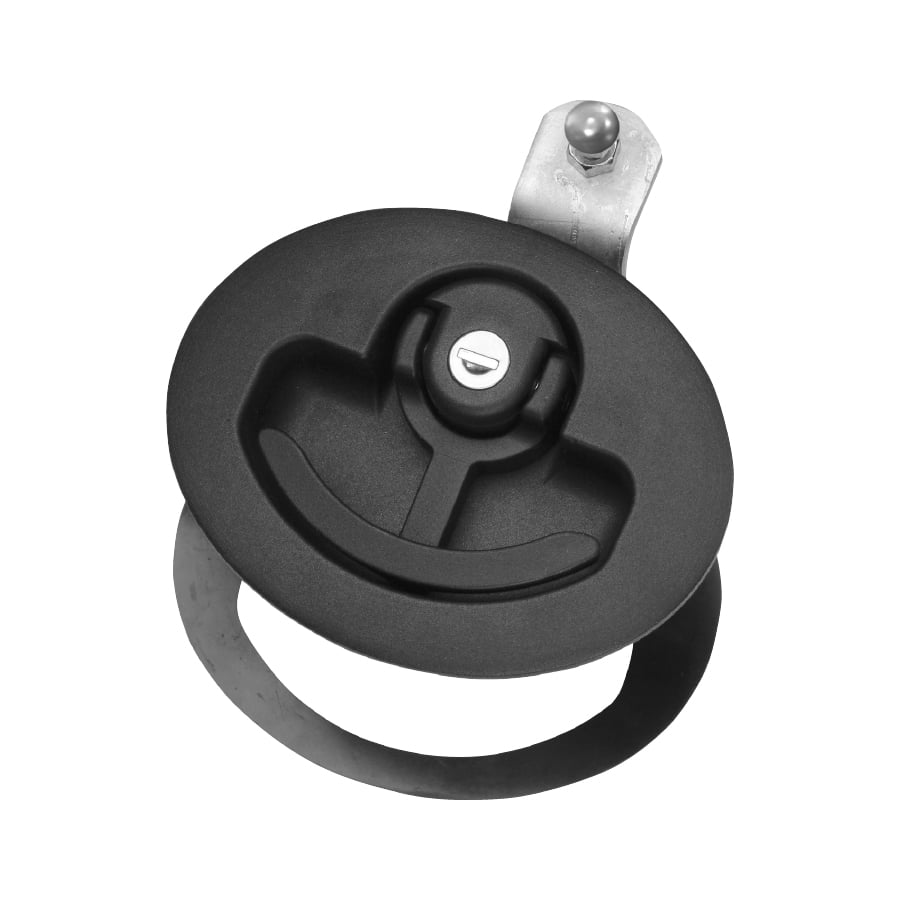

Water and corrosion resistant, with depth, direction, and ‘throw’ of latch changed quickly and easily to give great range of adjustment. Simple to fit, with ‘U’-brackets and gasket provided

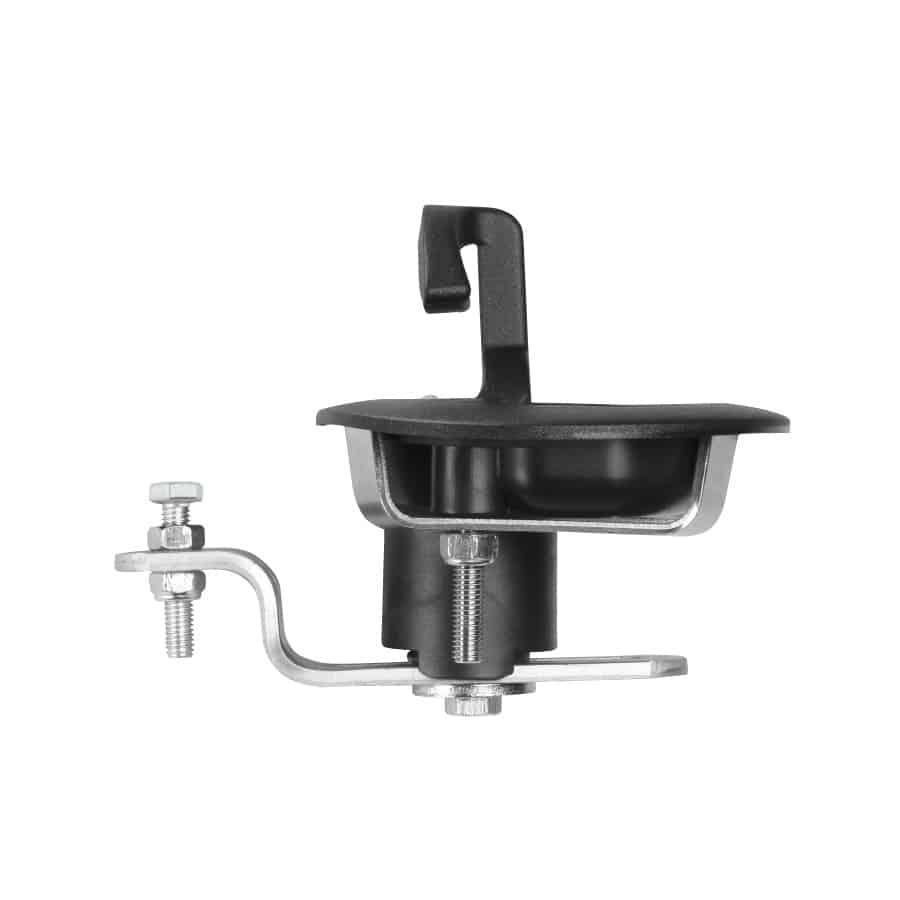

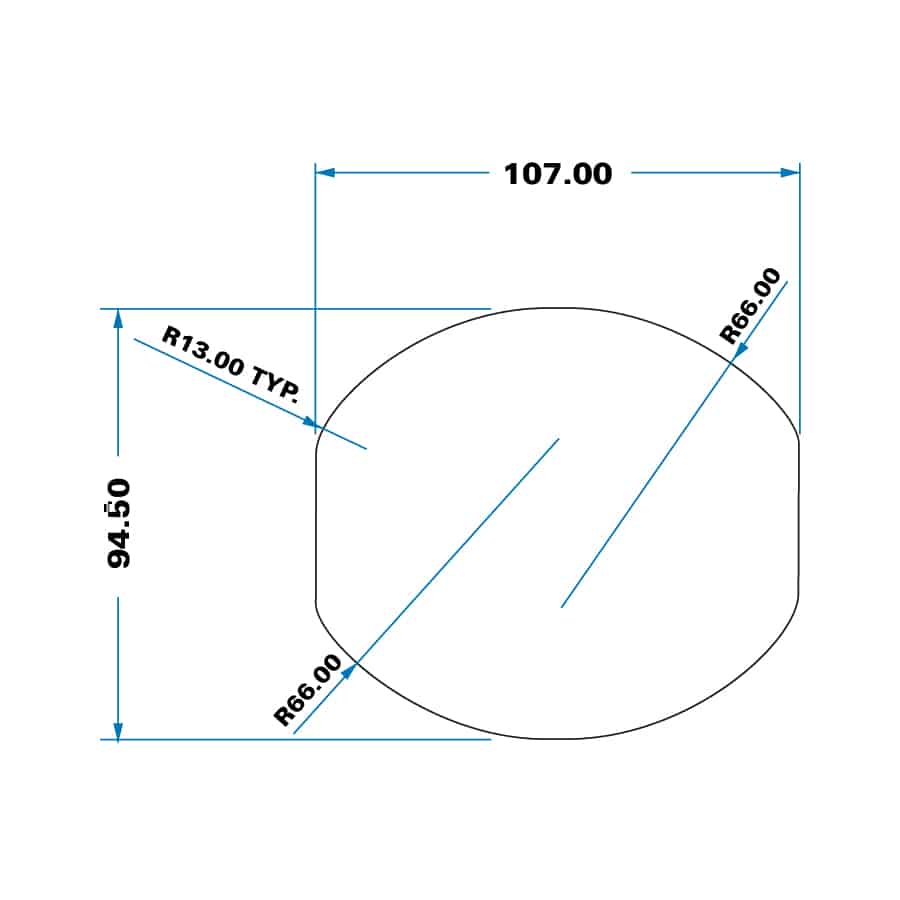

Unit fits through aperture, is clamped against panel edge by two U-brackets, and secured by M8 locknuts on 45mm bolts.
Shell & hub in glass-filled nylon, zinc diecast handle, latch-bar & brackets in mild steel, with cut-rubber gasket.
Unlock and lift handle, which releases latch bar, and turn to open door. To secure, bring latch to vertical and press down on handle, which compresses bar against door-edge.
Latch travels 90 degrees from centre (rest) position in either direction against ‘stops’. It is not ‘handed’.
Black, self-coloured, with lightly-textured finish. Latch bar is yellow-zinc plated for corrosion resistance

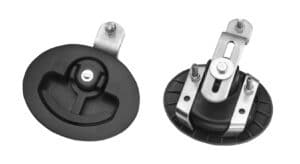

Latch “Above” Handle
In the ‘usual’ arrangement for this type of latch system the contactor is positioned above the handle (as with a regular ‘drop-T‘). This will suit doors hinged at the side, with the latch mounted in a sideways orientation.
Latch “Below” Handle
In this configuration the latch-bar is reversed to bring the contactor under the handle position. This is ideal for top-hinged doors and hatches, where handle lifts in the normal way while engagement takes place at the bottom face. The bar is released and secured by a hexagon bolt and securing plate
| Weight | 0.5 kg |
|---|---|
| Material | Zinc Die Cast |
| Finish | Black |
| Type | Locking, Keyed Alike |
