PTS400EX (DP) Steelmate - Parking Sensors - Front Or Rear
Dual Purpose Front Or Rear Parking Sensors



+£13.58 VAT

4 sensor premium front or rear upgradeable parking sensor kit with OEM sounding speaker.

Read More >
Weight 0.5 kg

When purchasing from the TGS Parts, our aim is to make buying online as convenient as possible, which means offering a wide range of delivery (sometimes called carriage) options for you to choose from.

Delivery charges vary depending on:

  • the delivery address of your goods (your region)

Your total charge for delivery, along with all the different delivery options we’re able to offer for any particular order, will always be clearly displayed at the checkout, however the information below gives a general overview of our delivery charging structure.

Tip: Please use a specific persons name if you are using postage as small packages can be lost in larger company’s mailrooms.

More Info

We hope that you’re pleased with your purchase from TGS Parts, however we do understand that occasionally, you may need to return goods to us. We’ve set out below the main reasons why goods tend to be returned, so please read all of the categories and follow the returns process which you feel applies to you…

Please note that our Returns Policy for Consumers does not affect your statutory rights. You can get more information about your statutory rights from the Citizens Advice Bureau ( or Consumer Direct ( We reserve the right to inspect the goods and verify any fault(s) and/or any damage.

More Info

In Stock


Estimated delivery by 20/06/2024


free returns

call us today

Click & collect

Product Description

Main Features:

58K sensors for better coverage and excellent stability
5-stage audible warning buzzer with adjustable tone pitch and volume
Option of adding a visual display
Extendable stopping distance from 30cm to 50cm, ideal for vehicles with tow bars or rear mounted spare wheels and steps
A simple jumper change when installing allows you to select a front or rear system
Heavy rain proof design
All weather design (-40°C>+80°C)
Anti-false alarm patent
Easy installation

Technical Parameters:

Voltage: 12/24V
Temperature: -40>+80°C
Input: <4W
Beep volume: 70>90dB
Range (Rear): 0.3>1.5m
Range (Front): 0.3>1.0m

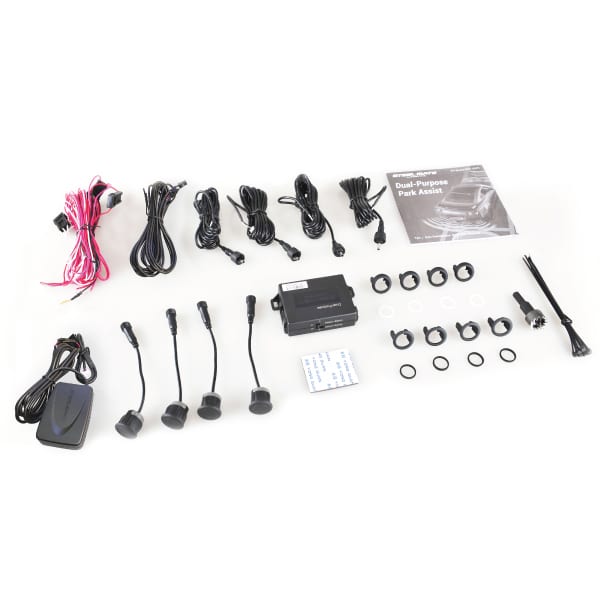

Included In The Kit:

4 x 14D-15 sensor heads with 4 degree clip on heads fitted
4 x 0 degree clip on heads
4 x 10 degree clip on heads
4 x 2.7m sensor cables
1 x ECU
1 x Power loom
1 x Speaker
1 x 4m speaker/visual display extension cable
1 x 19mm hole saw
1 x User/installation manual

Associated Products

No associated products at this time.

Product Information

The Steelmate PTS400EX (DP) is a premium 4 sensor front or rear upgradeable parking sensor kit with push fit sensors and OEM sounding speaker. The system can be programmed to ignore tow bars, nudge bars or spare wheels. The PTS400EX (DP) is compatible with our DS1 & DS2 visual displays and can be used as a 2 sensor front or rear system if required. The sensor hole size is 19mm in diameter. The visible external diameter of the sensor head is 22.9mm with a depth of 20.1mm and they have detachable cables and the option to change sensor head angle between 4 and 10 degrees with a removable angled clip on ring which is included in the kit.
