CAP168 Amber Beacon Range24 LEDs, 12–24V, IP67, 1‑Bolt, 3‑Bolt, DIN & Magnetic – TransLite

SKU: TL-BCAP

£19.60

£23.52 Inc VAT


Details

The International Civil Aviation Organisation (ICAO) CAP168 airport compliant beacon series. 4 different fitment styles – Magnetic, DIN, 3-Bolt & Single Bolt

Read More >

Quantity

Quantity

If you need more units than what is currently in stock, please call 0117 244 2522.

If this item is on backorder, please call 0117 244 2522 for the estimated availability date.

If you need more units than what is currently in stock, please call 0117 244 2522.

Buying in Bulk?

We offer tailored pricing and trade accounts for regular trade customers.

The TransLite CAP168 amber LED airport beacon is an ICAO/CAP168‑compliant warning light designed for aircraft support vehicles, airside operations, and other high‑visibility signalling applications. With 24 high‑power LEDs and seven selectable flash patterns (including CAP168 single flash), this beacon delivers clear, dependable amber visual alerts in airfield and ground‑support environments.

Operating on a 12–24V DC input, the beacon offers a range of mounting options — Magnetic, DIN, 3‑Bolt, and 1‑Bolt — for versatile installation across vehicles and equipment. Its UV‑protected polycarbonate Fresnel lens and IP67 waterproof rating ensure lasting performance outdoors, while robust construction resists weathering and vibration for reliable use in demanding aviation conditions.

Key Features

  • 24 × high‑output LEDs for strong amber visibility
  • 7 selectable flash patterns, including CAP168 single flash
  • Multi‑voltage input: 12–24V DC
  • UV‑protected Fresnel polycarbonate lens
  • Four mounting options: Magnetic, DIN, 3‑Bolt, 1‑Bolt
  • Weatherproof and vibration‑resistant construction
  • Reverse polarity protection
  • Rated LED life up to 100,000 hours

Technical Specifications

  • Voltage input: 12–24V DC
  • LED count: 24 LEDs
  • Flash patterns: 7 selectable, CAP168 compliant
  • Max current: 1.5A @ 12V, 0.75A @ 24V
  • Max wattage: 18W
  • Mount dimensions:

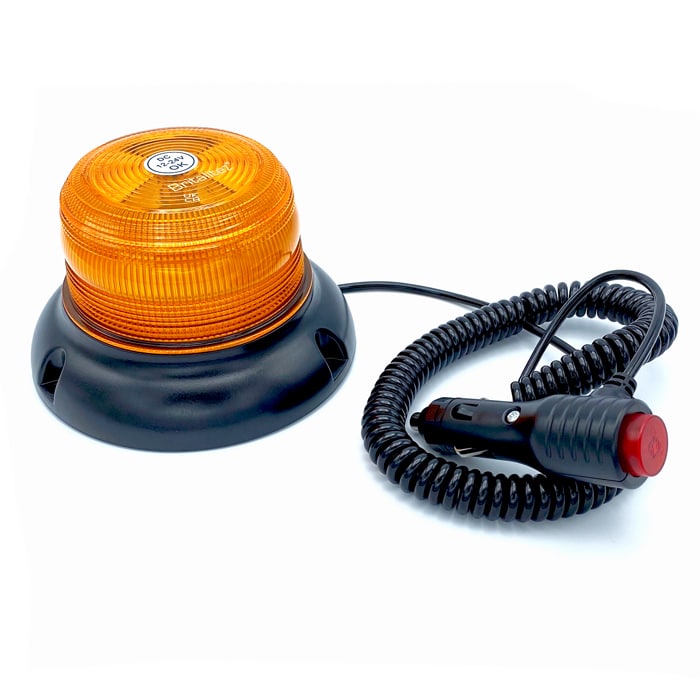

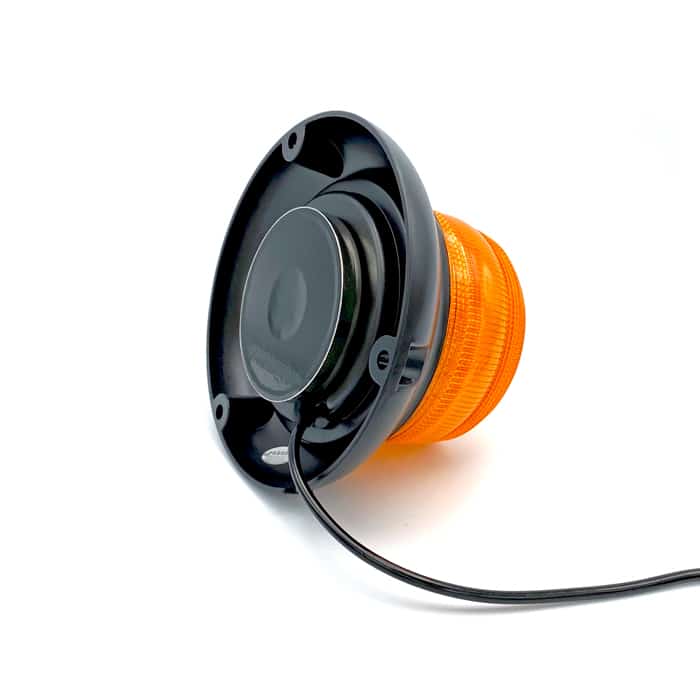

    • Magnetic: W130 × H81mm (coil cable 70–200cm)

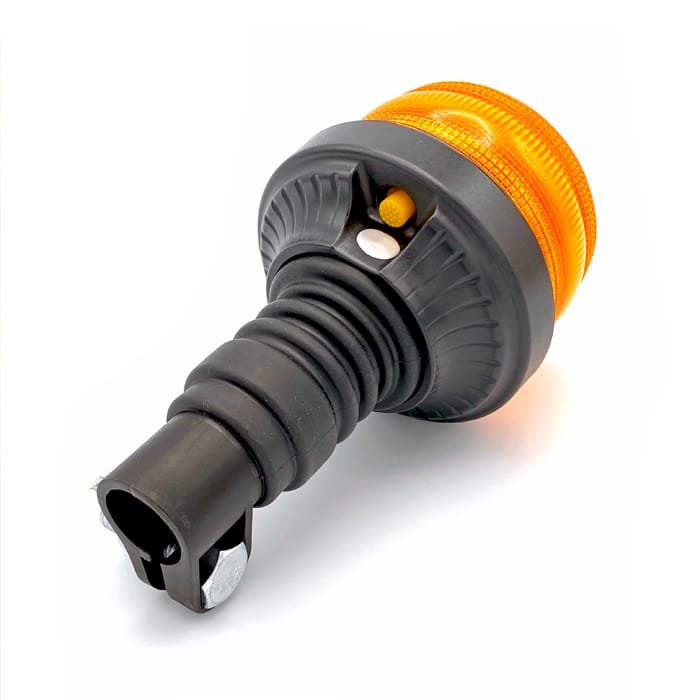

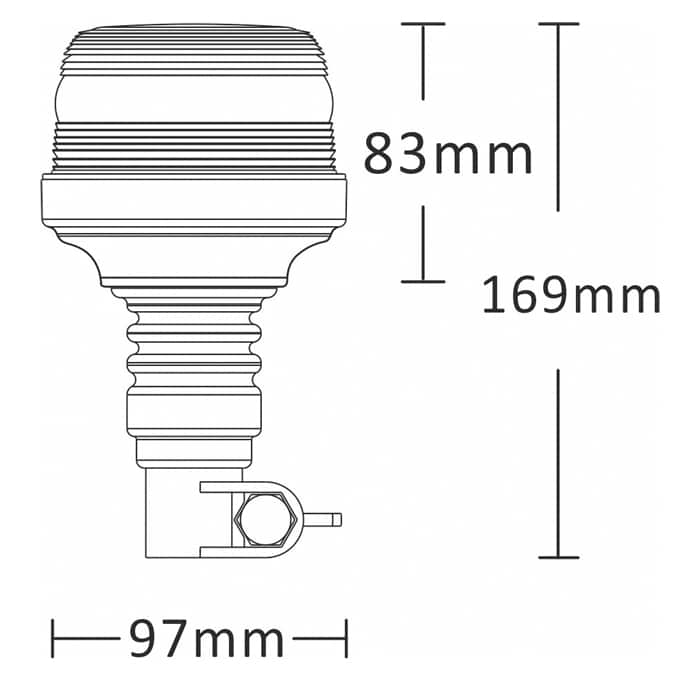

    • Flexi‑DIN: W97 × H169mm

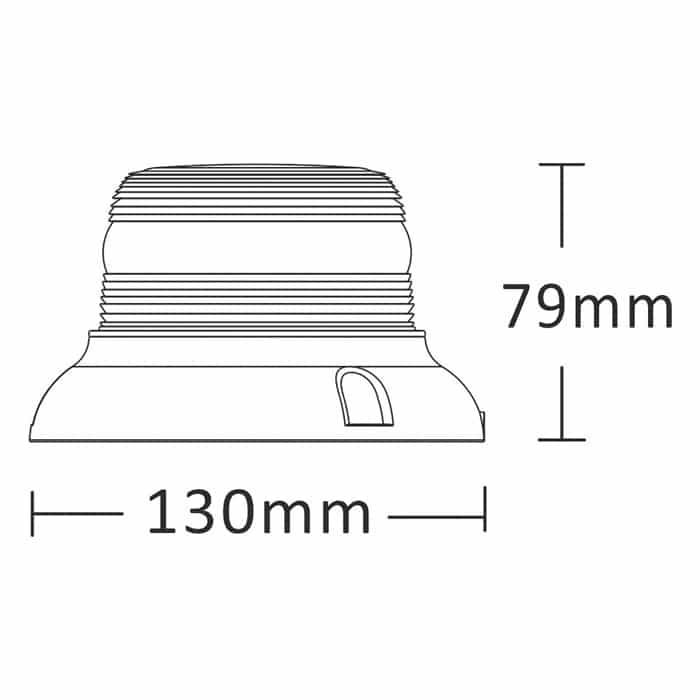

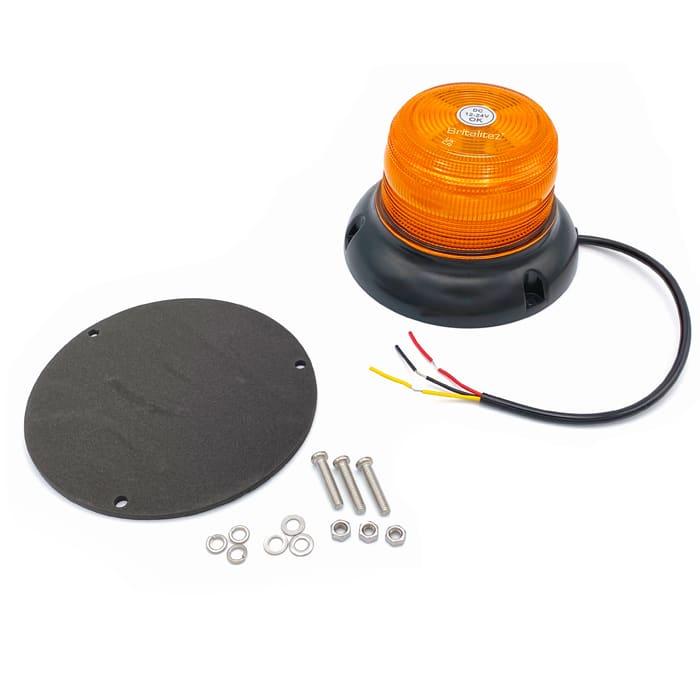

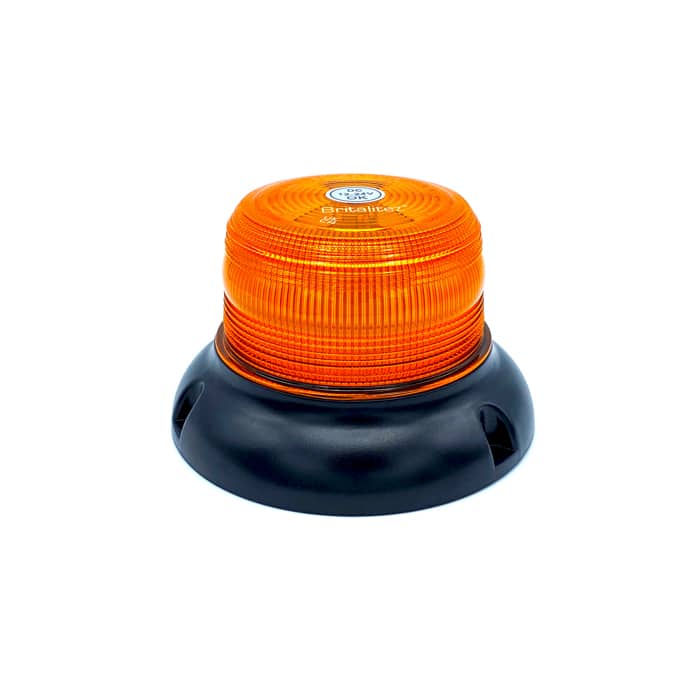

    • 3‑Bolt: W130 × H79mm (300mm cable)

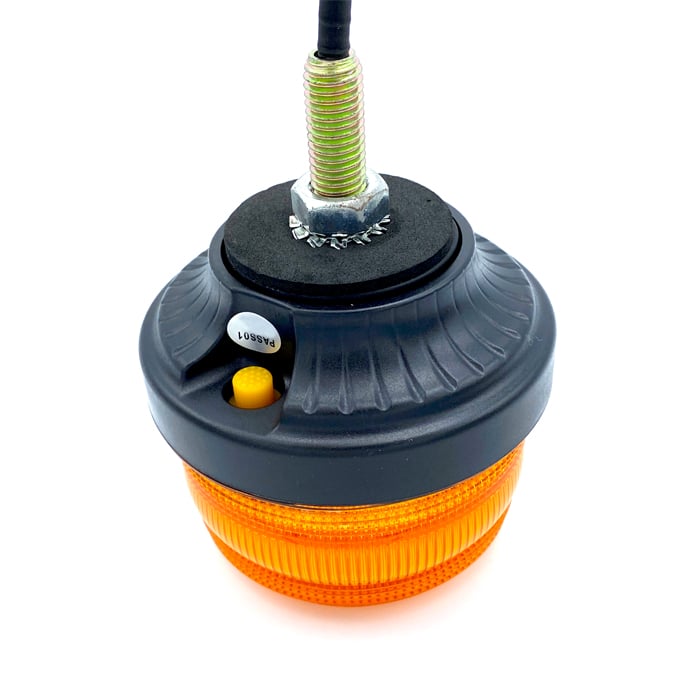

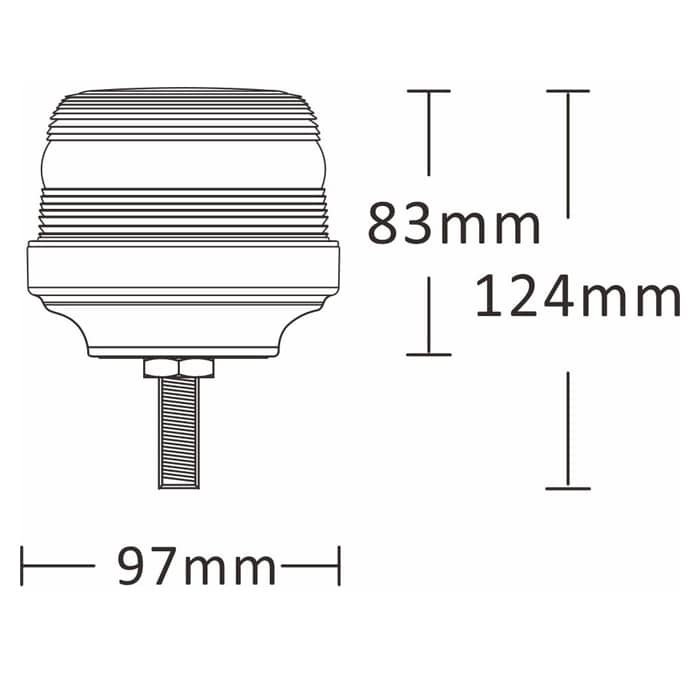

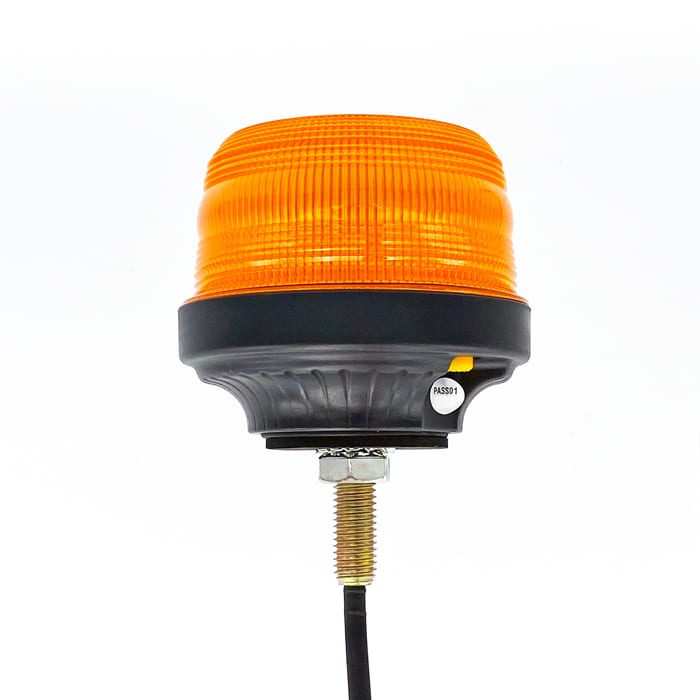

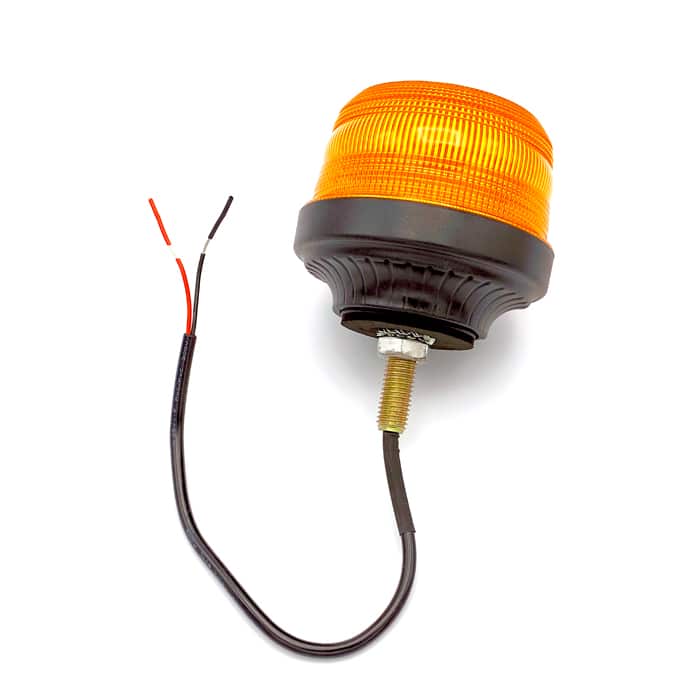

    • 1‑Bolt: W97 × H83mm / H124mm with bolt (290mm cable)

Compliance & Durability

  • ICAO / CAP168 approved (airport flash patterns)
  • ECE R65 Class 1 amber performance
  • EMC compliant (ECE R10)
  • CISPR 25 Class 3
  • CE and UKCA approved
  • IP67 waterproof rating
  • Weather‑ and vibration‑proof design
  • Warranty: 2 years

Why Choose This CAP168 Amber LED Beacon?

The TransLite CAP168 Amber LED Beacon provides a regulation‑compliant, high‑visibility warning solution for airport vehicles and ground support equipment. With dependable flash patterns, flexible mounting options, and rugged construction, it ensures clear signalling for airside operations and safety‑critical environments. This beacon is designed for professionals who need trusted performance in demanding outdoor conditions.

See the full TransLite LED beacon range for more options and industrial warning lights.

Weight 2 kg
Mount

1-Bolt, 3-Bolt, DIN, Magnetic
